Installing the ingestor

Note: This is just an example of installing and running the service. You should adapt this method to your facility’s needs.

Running throuhg docker

  1. Make sure that docker is up and running
  2. Check that you have docker compose
  3. Modify the config in the docker-compose.yaml file under the configs.openem-ingestor-config.yaml section according to your needs (see below).
  4. Modify the environment variables according to your needs (remove service user parameters if you are using ExtGlobus).
  5. Run docker compose up when you’re done.

Running without docker containerization

  1. Install go
  2. Create a VM or setup a bare-metal server for the ingestor. You can also run it on your own computer.
  3. git clone git@github.com:SwissOpenEM/Ingestor.git
  4. cd [REPO_DIR]/cmd/openem-ingestor-service
  5. go build -o build/ingestor .
  6. setup a config under build/openem-ingestor-config.yaml or ~/.config/openem-ingestor/openem-ingestor-config.yaml
  7. set environment variables, if necessary, here
  8. ./build/ingestor launches the ingestor.

Create a base configuration for the ingestor

Note: Additional information can be found here

Run the following command:

cp [REPO_DIR]/configs/openem-ingestor-config.yaml [REPO_DIR]/cmd/openem-ingestor-service/build/openem-ingestor-config.yaml

Configuring the ingestor

SciCat

The relevant section of the config for Scicat is:

...
Scicat:
  Host: "https://scicat.backend/api/v3/"
...

Transfer: PSI Globus Transfer Request Service - Recommended

Transfer:
  Method: ExtGlobus
  ExtGlobus:
    TransferServiceUrl: "https://url.at.psi/globus/service"
    SrcFacility: "EXAMPLE-FACILITY-1" # "FAC-1" if you're using the default scicatlive setup
    DstFacility: "EXAMPLE-FACILITY-2" # "FAC-2" if you're using the default scicatlive setup
    CollectionRootPath: "/some/path" # the path at which the Source Globus Collection is mounted (eg. '/home')

Disable service account check: using this mode, the webserver.other.DisableServiceAccountCheck should be set to true, as there’s no need for any service account in the Ingestor in this mode.

Transfer: Direct Globus Requests - Back-Up Option, not recommended

...
Transfer:
  Method: Globus
  Globus:
    ClientID: "globus-auth-client-id"
    ClientSecret: "globus-auth-client-secret[optional]"
    RedirectURL: "[insert ingestor frontend url]"
    Scopes:
      - scope1
      - scope2
      ...
    SourceCollectionID: "uuid-of-source-collection"
    CollectionRootPath: "/insert/path/here"
    DestinationCollectionID: "uuid-of-destination-collection"
    DestinationTemplate: "/nacsa///"
...

Transfer.Globus.ClientID: this should be set to the same client-id as the one you’ll use in the next paragraph. You need to create a new client on app.globus.org, please check out the following page for more information

Scopes: These will include scopes for accessing the Globus Connect Server endpoints you want to interact with in the name of the user. Usually, you’re only required to specify the following scope for each endpoint: "urn:globus:auth:scope:transfer.api.globus.org:all[*https://auth.globus.org/scopes/[ENDPOINT ID HERE]/data_access]" where you replace [ENDPOINT ID HERE] with the endpoint’s UUID.

Warning: The source and destination endpoint scopes are only intended for Globus Connect Server endpoints. For Globus Connect Personal (GCP), just skip specifying the scope made from its collection-id. You have to make sure that the GCP collection is owned by the token’s user.

Service account: using this mode, the webserver.other.DisableServiceAccountCheck should be set to false, and a service account must be set using the INGESTOR_SERVICE_USER_NAME and INGESTOR_SERVICE_USER_PASS environment variables. These are the credentials for an internal SciCat user, which has the right to update any dataset. It is needed in order to safely mark any dataset as archivable in this mode.

Auth

The following section in the config file describes the necessary setup for authentication. Only OIDC is supported for SSO, and we don’t provide any internal user login system.

...
WebServer:
  Auth:
    ...
    FrontendUrl: "http://frontend.url" # optional value to set a redirect to a frontend.
    OAuth2:
      ClientID: "ingestor"
      RedirectURL: "http://localhost:8888/callback"
      Scopes:
        - email
    OIDC:
      IssuerURL: "http://oidc.provider/"
    JWT:
      UseJWKS: true
      JwksURL: "http://[OIDC_URL]/.../certs"
      JwksSignatureMethods:
        - RS256
    RBAC:
      AdminRole: "ingestor-admin"
      CreateModifyTasksRole: "ingestor-write"
      ViewTasksRole: "ingestor-read"
...

Please make sure the following fields are properly set:

  • WebServer.Auth.ClientID: this is the client id of the ingestor. It should be added to the IdP that you want to use with the ingestor. This id shouldn’t be shared with other ingestor instances. Look up your IdP’s docs for adding a new client.
  • WebServer.Auth.OAuth2.RedirectURL: The url at which the ingestor would be deployed. This should be known by you.
  • WebServer.Auth.OIDC.IssuerURL: the url to the OIDC provider. It should conform to the Discovery spec. In case of Keycloak, it usually looks like http://[KEYCLOAK_URL]/realms/[REALM_NAME].
  • WebServer.Auth.JWT.JwksURL: It is the JwksURL of the OIDC provider. It is used to provide the client with the current set of public keys. It should have the same base url, but the rest of the path depends on the OIDC provider. In case of Keycloak, it should have the following format: http://[KEYCLOAK_URL]/realms/[REALM_NAME]/protocol/openid-connect/certs. If your provider does not support Jwks, then you can set the keys manually as follows:
    ...
  JWT:
    UseJWKS: false
    Key: "[insert public key here]"
    KeySignMethod: "[set the key signature method here]"
...
  • WebServer.Auth.RBAC.[X]Role: this is where you set your expected role names. It’s a way to customize role names, but you can leave them as is. If facilities use shared OAuth2 client-id’s (shouldn’t be the case) then these roles should contain the name of each facility to make. You should also customize these if your IdP of choice can’t separate what roles to map to users based on clientid. These roles specifically give permission to interact with the ingestor endpoints, and nothing else. Accessing datasets is determined by the AccessGroups of the user on SciCat.

If you’re using the supplied example scicatlive config for testing, the roles are named FAC_ingestor_[function] where [function] can be “admin”, “write” or “read”.

Note: If your IdP isn’t keycloak you have to make sure that the roles are mapped to OAuth2 claims in the same way as Keycloak: [access_token_jwt].resource_access[(client_id)].roles

Paths

...
WebServer:
  Paths:
    CollectionLocations:
      location1: "/some/path/location1"
      Projects: "/some/other/path/location2"
    ExtractorOutputLocation: "(optional)/location/to/output/temp/files"
...
  • It’s important configure CollectionLocation as that is where the ingestor will look for to find datasets.
  • The ExtractorOutputLocation sets a custom path for the temporary extractor files. Normally they’re outputted to /tmp.
  • Due to the way the config library works, all location keys will be lowercased.

Metadata Extractors

Example config:

...
MetadataExtractors:
  InstallationPath: ./extractors/
  SchemasLocation: ./schemas/
  DownloadMissingExtractors: true
  Timeout: 2m
  Extractors:
  - Name: LS
    GithubOrg: SwissOpenEM
    GithubProject: LS_Metadata_reader
    Version: v0.2.8
    Executable: LS_Metadata_reader
    Checksum: e8a2abc7a0d8759edf4559e27879b7977000a868a2f7d39b7804ff5e5c0d1559
    ChecksumAlg: sha256
    CommandLineTemplate: "-i '{{.SourceFolder}}' -o '{{.OutputFile}}'"Methods:
      - Name: Single Particle
        Schema: oscem_schemas.schema.json
        Url: "http://some.url/"
      - Name: Cellular Tomography
        Schema: oscem_cellular_tomo.json
        Url: "http://some.url/"
      - Name: Tomography
        Schema: oscem_tomo.json
        Url: "http://some.url/"
      - Name: EnvironmentalTomography
        Schema: oscem_env_tomo.json
        Url: "http://some.url/"
...
  • InstallationPath determines where the extractors should be downloaded/installed.
  • SchemasLocation determines where the schemas for extractors reside.
  • DownloadMissingExtractors sets whether to download extractors automatically from github
  • Timeout sets the maximal time any extractor should run before timing out
  • Extractors is the list of extractors.
    • if using github for downloading, the following link is used: https://github.com/[GithubOrg]/[GithubProject].git
    • Version` is the release tag that will be attempted to be used.
    • Executable is the file that will be executed.
    • Checksum is used to verify the integrity of the executable
    • ChecksumAlg is to define the algorithm used for the checksum (only sha256 is used)
    • CommandLineTemplate is the command template to use with the executable, it appends a formatted list of paramters.
    • Methods is where you can define a list of methods that can be used with a particular extractor.
      • Name is the name of the method
      • Schema is the metadata schema to use for this method (must exist in SchemasLocation)
      • Url is the url for the schema, it will be used when the schema is not found locally to download it.

Metadata Extractor Jobs

This section is for configuring the metadata extractor job system. It is a system to process extraction requests in parallel and in order of requests.

WebServer:
  MetadataExtJobs:
    ConcurrencyLimit: 4
    QueueSize: 200

Where the ConcurrencyLimit is the max. number of extractions to be executed in parallel, and QueueSize is the max queue size which has FIFO order. If there are more pending requests than QueueSize then those requests will be processed randomly.

Adding the Ingestor to Keycloak

Note: This section assumes you’re running the Ingestor locally. Replace all instances of http://localhost:8888/ if you’ve deployed it in some other way.

Keycloak Setup

You can use the patch file here on the scicatlive project’s main branch (this commit, if the patch became incompatible with the up-to-date main branch), which will do the following steps automatically with default values.

  1. Setup keycloak, preferably with Docker

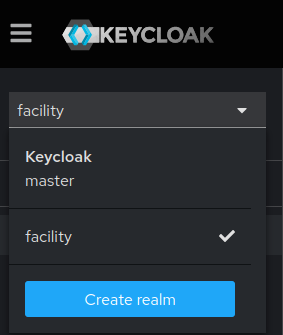

  2. [OPTIONAL] Add another realm where you’ll have your ingestor client added.
    • adding a realm

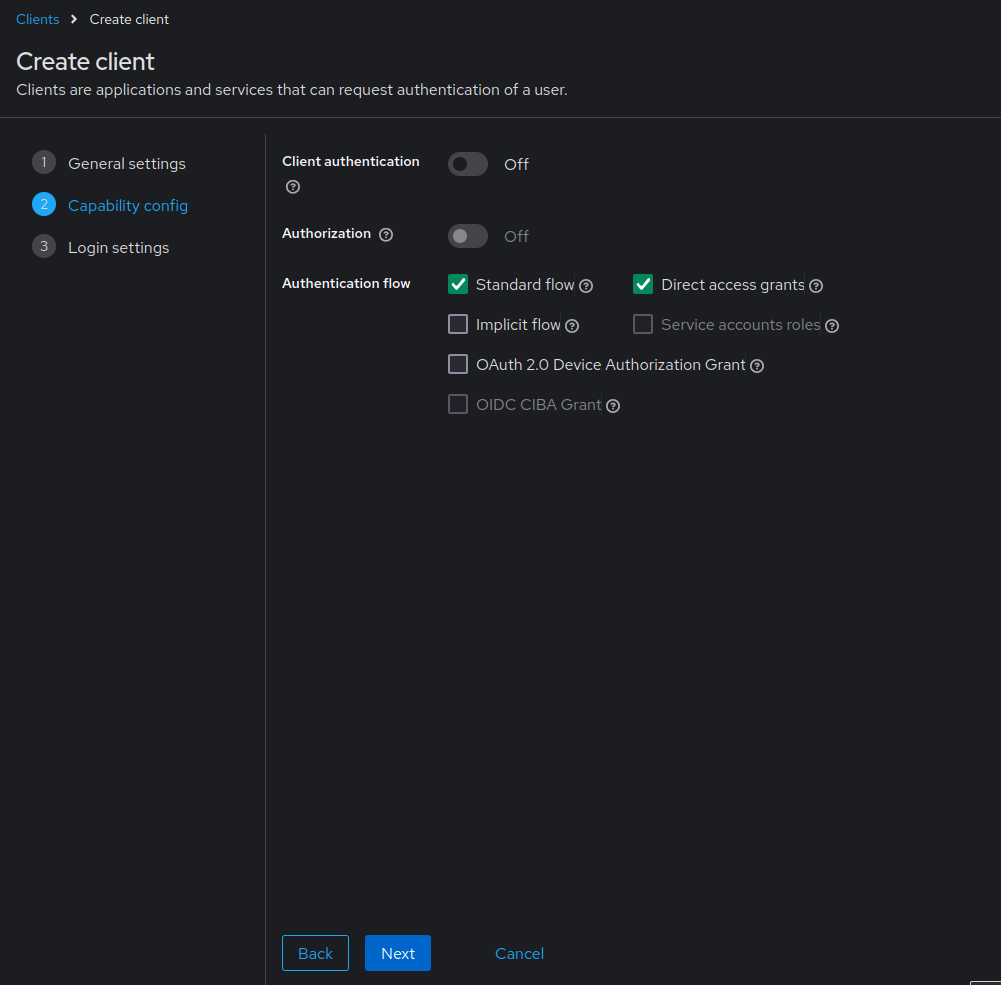

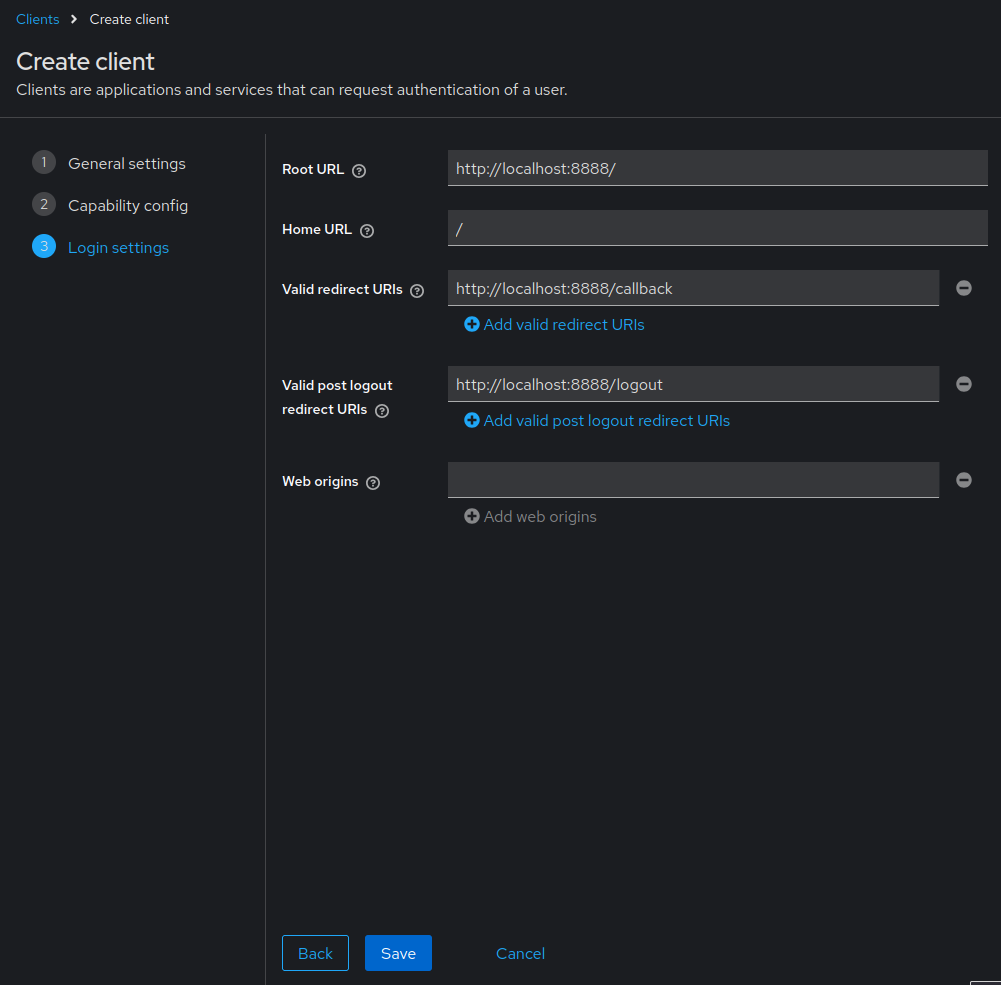

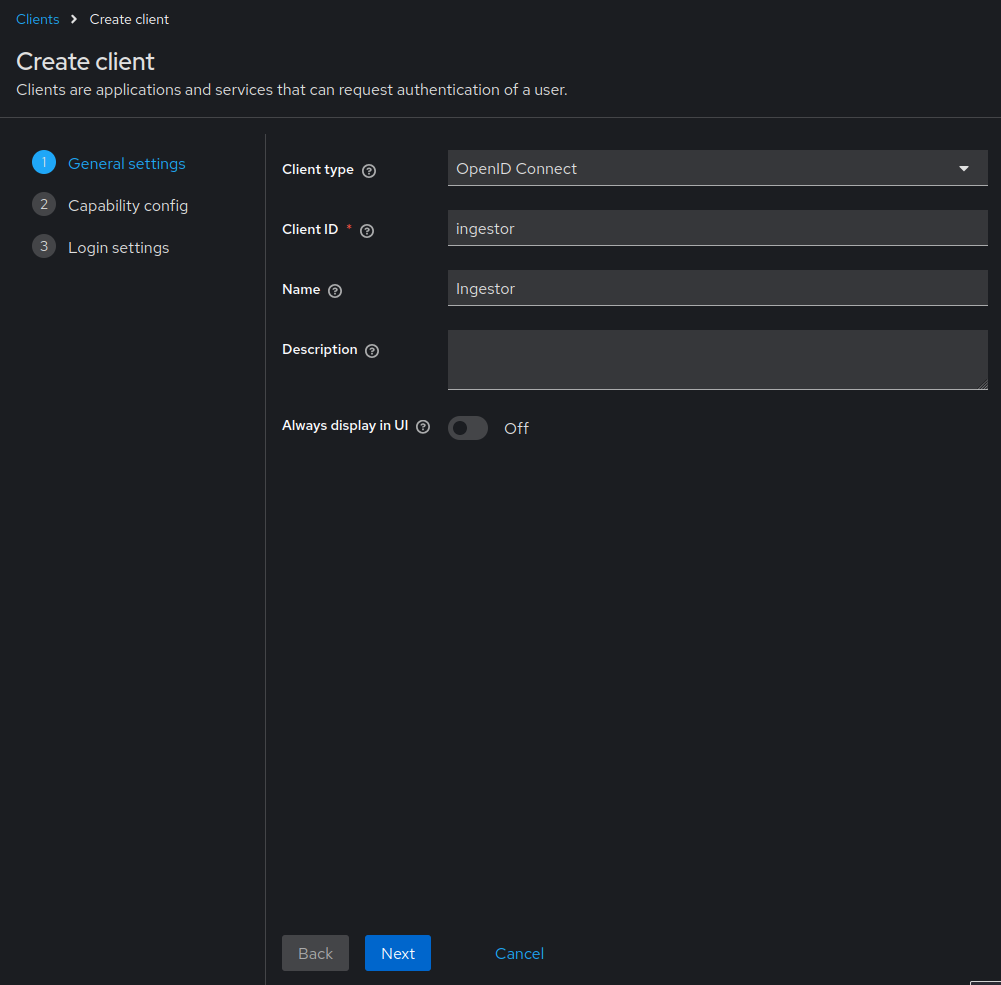

  3. Add a new client with the following parameters
    Client creation steps
    1 1
    1
  4. Edit your client and add client-specific roles that match the ones from your Ingestor config adding client roles
  5. Under the client’s “Client Scopes” tab, click on ingestor-dedicated
  6. Add mapper button -> “By configuration” -> Group Membership
  7. The token claim name should be “accessGroups” and Full group path should be turned off

Note: In most cases you will be using some external source of users in Keycloak, in which case, you need to map some claim of the incoming user to the roles that were setup in Step 4. This is not covered in this Install guide as it is highly specific to your own setup. If by any chance you’re setting up users directly in Keycloak, you can assign them the roles directly within the Keycloak admin menu.

The next section is useful for developers only.

Testing with authentication enabled locally (Developers only)

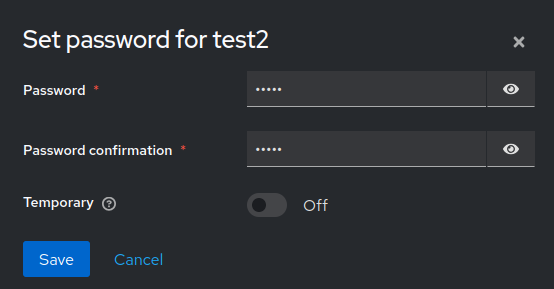

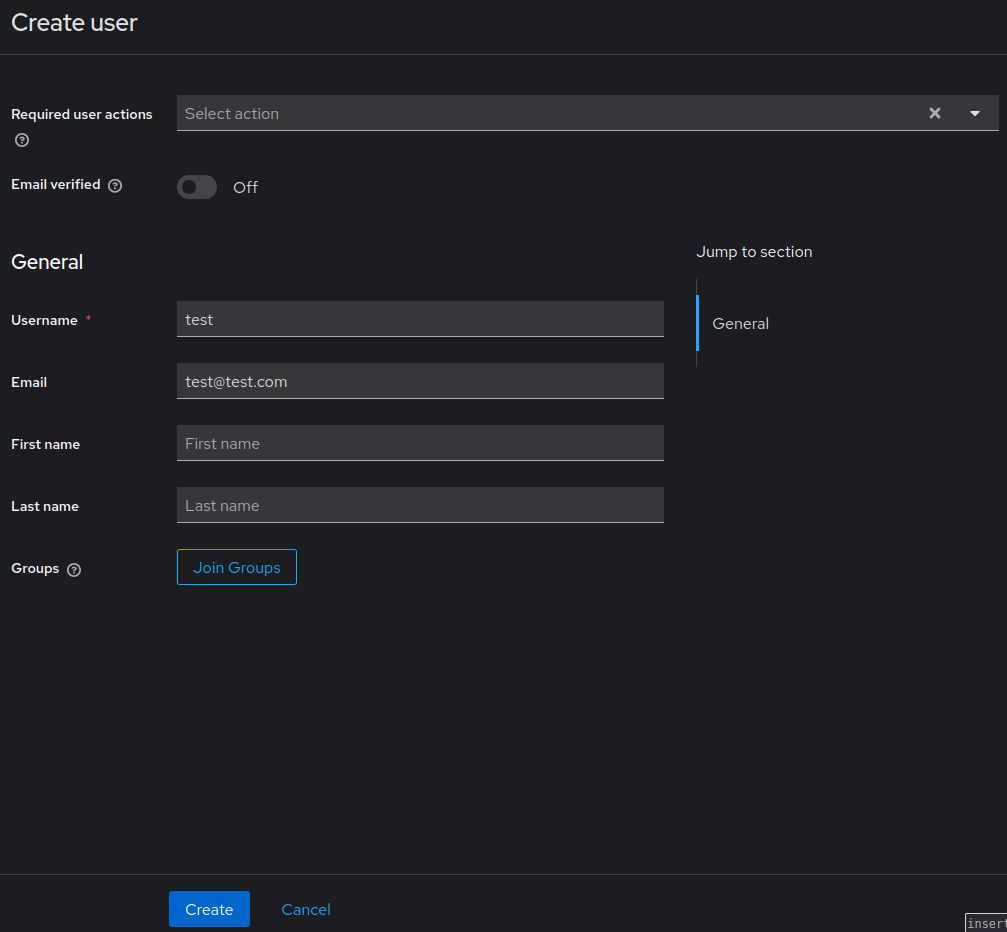

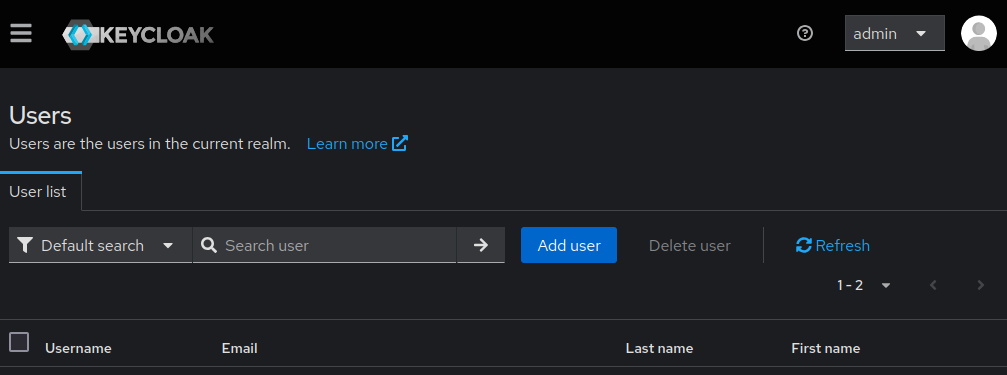

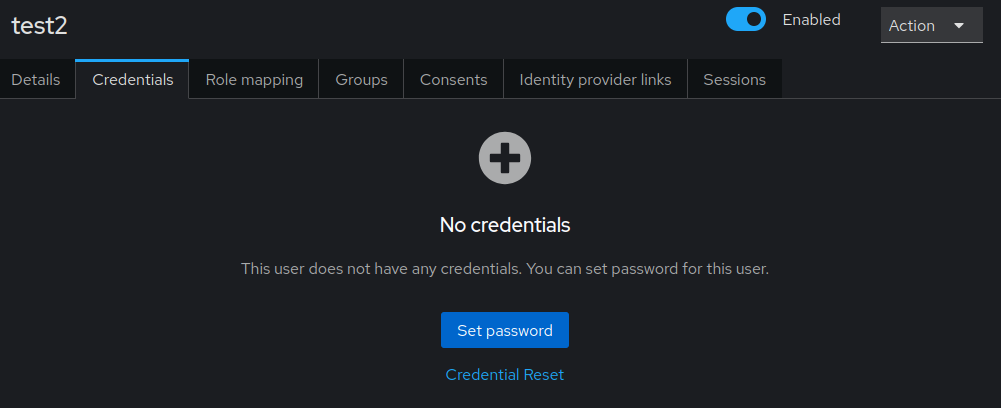

  1. Add a new test user. Don’t forget to set a password.
    User creation steps
    1 1
    1 1

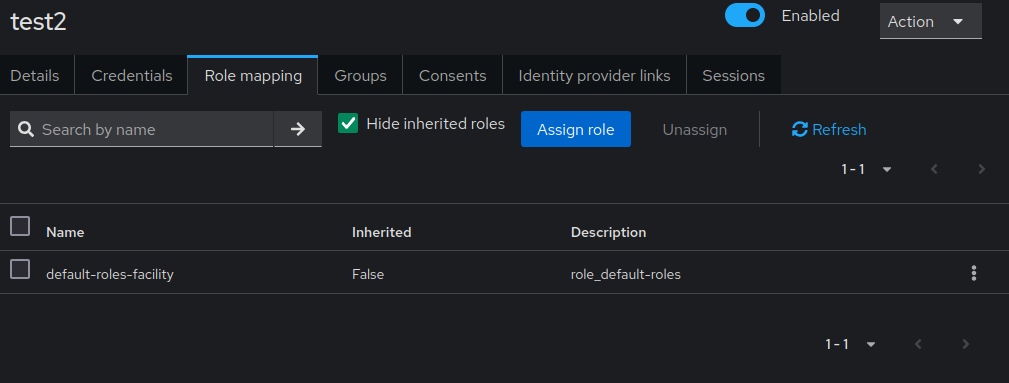

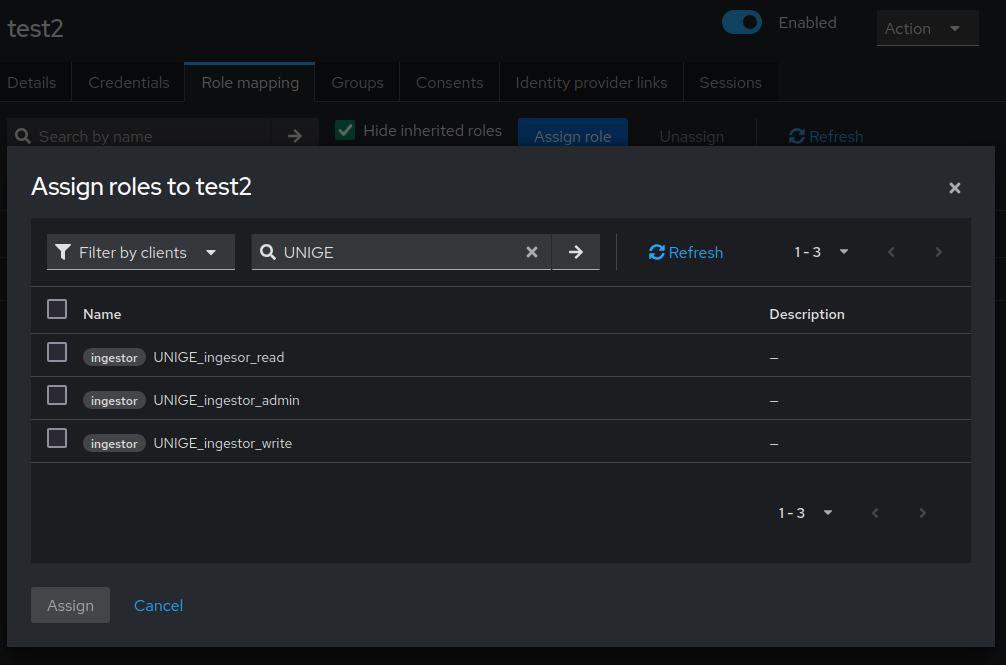

  2. Assign the read and write roles of the ingestor to this user.
    assigning roles
    1 1
  3. Go to http://localhost:8888/login

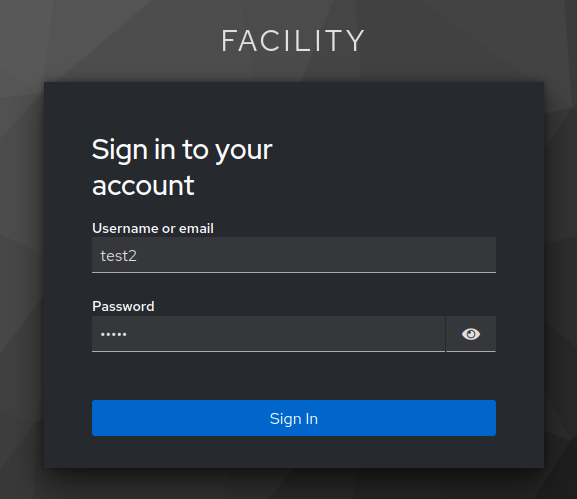

  4. This will open up the keycloak login page. Use your test user for logging in. login page

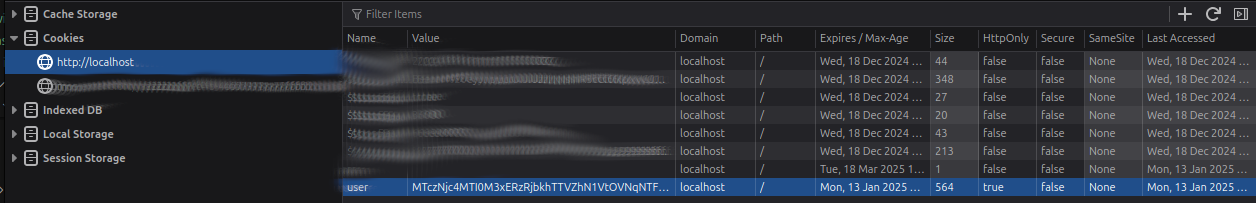

  5. If everything went well, you should be redirected to RedirectURL, and you should see a “user” cookie associated to the localhost domain in your browser’s debugger. If you also have a valid FrontendUrl your browser will get redirected to your Ingestor frontend, where you should be able to interact with the ingestor backend using the cookie. browser debugger with cookie
  6. [OPTIONAL] To test the ingestor’s auth directly, copy the cookie value from the browser, then you can use the following curl command:
    curl -v --cookie "user=[INSERT COOKIE VALUE HERE]" "localhost:8888/transfer?page=1"

    If the auth is successful, you should get an empty list as a reply.
