High-level Overview

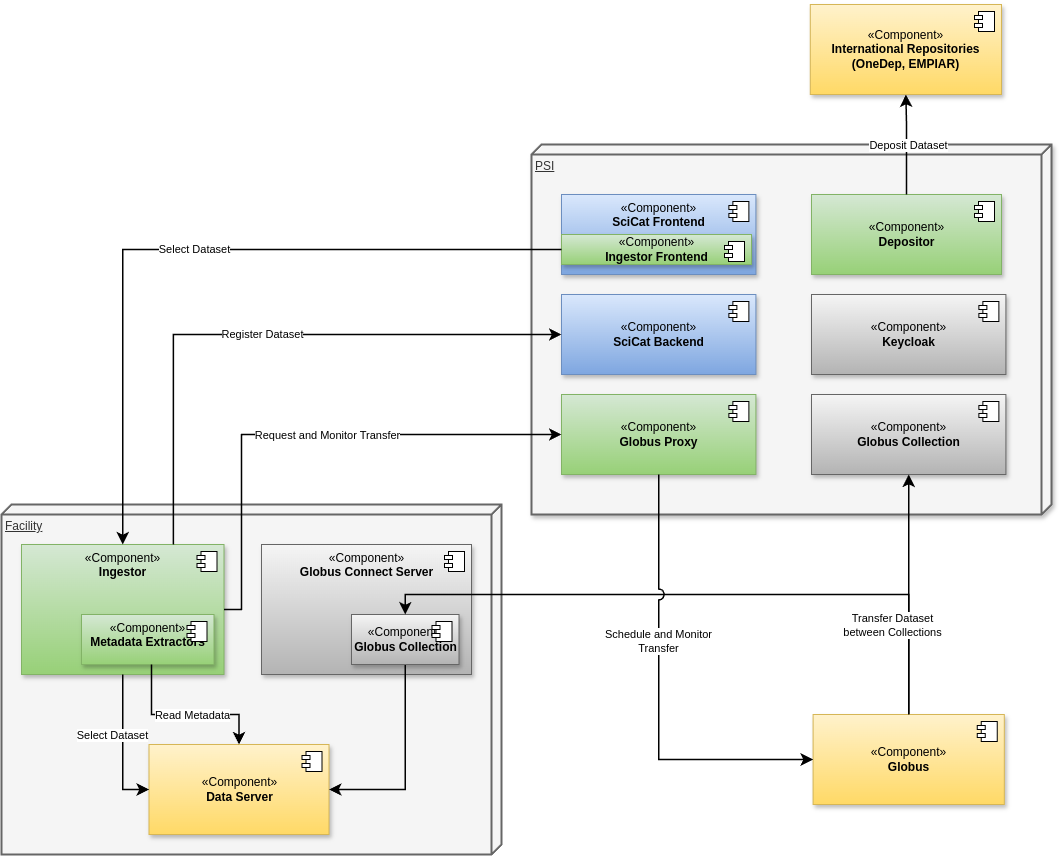

The following diagram shows the components involved in OpenEM and a (simplified) view of typical interactions between them.
Green: Newly developed components; Blue: Modified existing components; Grey: Newly deployed third-party components; Orange: External components
For simplicity, interactions regarding authentication flow are omitted. Please refer to the Ingestor for a detailed description.
For a detailed view of the situation at ETHZ, please refer to the documentation of the ETHZ Archiving Service.
Open Source Projects
For detailed instructions and documentation of the individual components, refer to the respective repositories.
| Project | Link |
|---|---|
| Ingestor | https://github.com/SwissOpenEM/Ingestor |
| Depositor | https://github.com/SwissOpenEM/Depositor |
| SciCat Frontend | https://github.com/SwissOpenEM/scicat-frontend |
| SciCat Backend | https://github.com/SciCatProject/scicat-backend-next |
| SciCat CLI | https://github.com/paulscherrerinstitute/scicat-cli |
| ETHZ Archiving Services | https://github.com/SwissOpenEM/ScopeMArchiver |
| Golang Globus transfer library | https://github.com/SwissOpenEM/globus-transfer-request |
| Metadata Extraction - Life Sciences | https://github.com/SwissOpenEM/LS_Metadata_reader |
| Metadata Extraction - Material Sciences | https://github.com/SwissOpenEM/MS_Metadata_reader |
| OSC-EM format converters | https://github.com/osc-em/converter-JSON-to-mmCIF |
| OSC-EM Schema | https://github.com/osc-em/OSCEM_Schemas |
